Building a Custom FeatureStoreLite MCP Server Using uv

A step-by-step guide that shows how to create your own lightweight feature store MCP server from scratch using FastMCP, run it through uv, and integrate it with Claude Desktop. This is a practical example of building a useful MCP server that ML engineers can actually use.

---

1. Why build a custom "FeatureStoreLite" MCP server?

Let's create a practical MCP server example that solves a real problem: feature storage and retrieval for ML pipelines. Our custom FeatureStoreLite server will be a microservice responsible for storing and retrieving precomputed feature vectors via keys, allowing ML pipelines to share features efficiently without recomputation.

This tutorial demonstrates how to build an MCP server that could be useful in a real-world ML pipeline.

2. Setup and Installation

First, install uv (if you haven't already):

# macOS/Linux with Homebrew
brew install uv

# Or install directly from the official installer
curl -LsSf https://astral.sh/uv/install.sh | sh

Then create your project with virtual environment and dependencies:

# Create project directory
mkdir mcp-featurestore && cd mcp-featurestore

# Initialize Python project (this creates pyproject.toml)
uv init

# Add dependencies
uv add "mcp[cli]"

---

3. Implementing our custom FeatureStoreLite server with FastMCP

Let's build our MCP server from scratch.

3.1. Create the database module

This module handles all database operations for storing and retrieving feature vectors.

Create database.py file:

touch database.py

Add the following code to the file:

# database.py

import sqlite3
import os


def get_db_path():
    """Get the database path - always in the script's directory"""
    script_dir = os.path.dirname(os.path.abspath(__file__))
    return os.path.join(script_dir, "features.db")


def init_db():
    """Initialize the feature store database"""
    conn = sqlite3.connect(get_db_path())
    conn.execute("""
        CREATE TABLE IF NOT EXISTS features (
            key TEXT PRIMARY KEY,
            vector TEXT NOT NULL,
            metadata TEXT,
            created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
        )
    """)

    # Add example features for experimentation
    example_features = [
        (
            "user_123",
            "[0.1, 0.2, -0.5, 0.8, 0.3, -0.1, 0.9, -0.4]",
            '{"type": "user_embedding", "user_id": 123, "age": 25, '
            '"category": "premium"}'
        ),
        (
            "product_abc",
            "[0.7, -0.3, 0.4, 0.1, -0.8, 0.6, 0.2, -0.5]",
            '{"type": "product_embedding", "product_id": "abc", '
            '"price": 29.99, "category": "electronics"}'
        ),
        (
            "doc_guide_001",
            "[-0.2, 0.5, 0.9, -0.1, 0.4, 0.7, -0.6, 0.3]",
            '{"type": "document_embedding", "doc_id": "guide_001", '
            '"title": "Getting Started Guide", "section": "introduction"}'
        ),
        (
            "recommendation_engine",
            "[0.4, 0.8, -0.2, 0.6, -0.7, 0.1, 0.5, -0.9]",
            '{"type": "model_embedding", "model": "collaborative_filter", '
            '"version": "1.2", "accuracy": 0.85}'
        )
    ]

    # Insert example features only if they don't exist
    for key, vector, metadata in example_features:
        existing = conn.execute(
            "SELECT 1 FROM features WHERE key = ?", (key,)
        ).fetchone()
        if not existing:
            conn.execute(
                "INSERT INTO features (key, vector, metadata) "
                "VALUES (?, ?, ?)",
                (key, vector, metadata)
            )

    conn.commit()
    conn.close()


def get_db_connection():
    """Get a database connection"""
    return sqlite3.connect(get_db_path())


if __name__ == "__main__":
    init_db()
    print("Database initialized successfully!")

Run the database initialization:

uv run python database.py

3.2. Create the MCP server

Create featurestore_server.py:

touch featurestore_server.py

Add the following code to the file:

# featurestore_server.py

import json
from mcp.server.fastmcp import FastMCP
from database import get_db_connection, init_db

mcp = FastMCP("FeatureStoreLite")

# Initialize database
init_db()


@mcp.resource("schema://main")
def get_schema() -> str:
    """Provide the database schema as a resource"""
    conn = get_db_connection()
    try:
        schema = conn.execute(
            "SELECT sql FROM sqlite_master WHERE type='table'"
        ).fetchall()
        if not schema:
            return "No tables found in database"
        return "\n".join(sql[0] for sql in schema if sql[0])
    except Exception as e:
        return f"Error getting schema: {str(e)}"
    finally:
        conn.close()


@mcp.tool()
def store_feature(key: str, vector: str, metadata: str | None = None) -> str:
    """Store a feature vector with optional metadata"""
    conn = get_db_connection()
    try:
        # Validate vector format (JSON array)
        json.loads(vector)
        conn.execute(
            "INSERT OR REPLACE INTO features (key, vector, metadata) "
            "VALUES (?, ?, ?)",
            (key, vector, metadata)
        )
        conn.commit()
        return f"Feature '{key}' stored successfully"
    except json.JSONDecodeError:
        return "Error: vector must be valid JSON"
    except Exception as e:
        return f"Error storing feature: {str(e)}"
    finally:
        conn.close()


@mcp.tool()
def get_feature(key: str) -> str:
    """Retrieve a feature vector by key"""
    conn = get_db_connection()
    try:
        result = conn.execute(
            "SELECT vector, metadata FROM features WHERE key = ?", (key,)
        ).fetchone()
        if result:
            return json.dumps({
                "key": key,
                "vector": json.loads(result[0]),
                "metadata": json.loads(result[1]) if result[1] else None
            })
        else:
            return f"Feature '{key}' not found"
    except Exception as e:
        return f"Error retrieving feature: {str(e)}"
    finally:
        conn.close()


@mcp.tool()
def list_features() -> str:
    """List all available feature keys"""
    conn = get_db_connection()
    try:
        result = conn.execute(
            "SELECT key, created_at FROM features ORDER BY created_at DESC"
        ).fetchall()
        features = [{"key": row[0], "created_at": row[1]} for row in result]
        return json.dumps(features)
    except Exception as e:
        return f"Error listing features: {str(e)}"
    finally:
        conn.close()


@mcp.resource("features://{key}")
def feature_resource(key: str) -> str:
    """Expose feature data via URI"""
    return get_feature(key)


if __name__ == "__main__":
    mcp.run()

Test the server in development mode:

uv run mcp dev featurestore_server.py

---

4. Connecting to Claude Desktop

To use the FeatureStoreLite server with Claude Desktop, you need to update your Claude configuration file.

4.1. Configuration file location

• macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
• Windows: %APPDATA%/Claude/claude_desktop_config.json

4.2. Configuration setup

Add the following configuration to your claude_desktop_config.json:

{
  "mcpServers": {
    "featurestore": {
      "command": "uv",
      "args": [
        "run",
        "--with",
        "mcp[cli]",
        "mcp",
        "run",
        "/path/to/your/featurestore_server.py"
      ]
    }
  }
}

💡 Important Tip: If you are getting errors when connecting to the server, you can use the next command:

uv run mcp install featurestore_server.py

This command will automatically install and configure the server for Claude Desktop. After running this command, check your Claude Desktop config file to see how the server has been configured.

This is often the easiest way to get started, especially if you're having trouble with manual configuration!

4.3 Testing the server

After updating the config:

1. Restart Claude Desktop completely (quit and reopen)
2. Look for connection status in Claude's interface
3. Try asking Claude to interact with your feature store

Example queries to test:

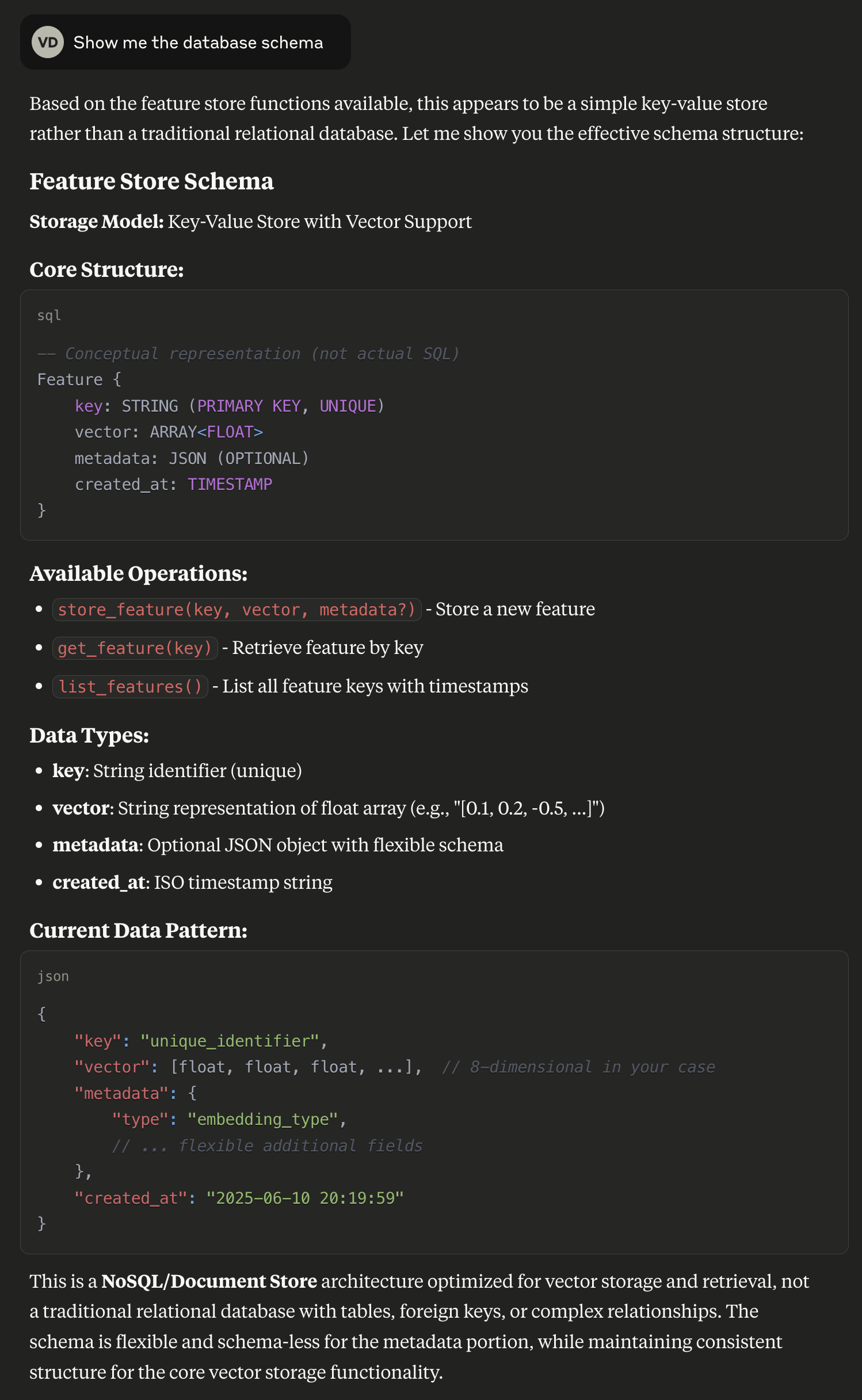

• "Show me the database schema for the feature store"

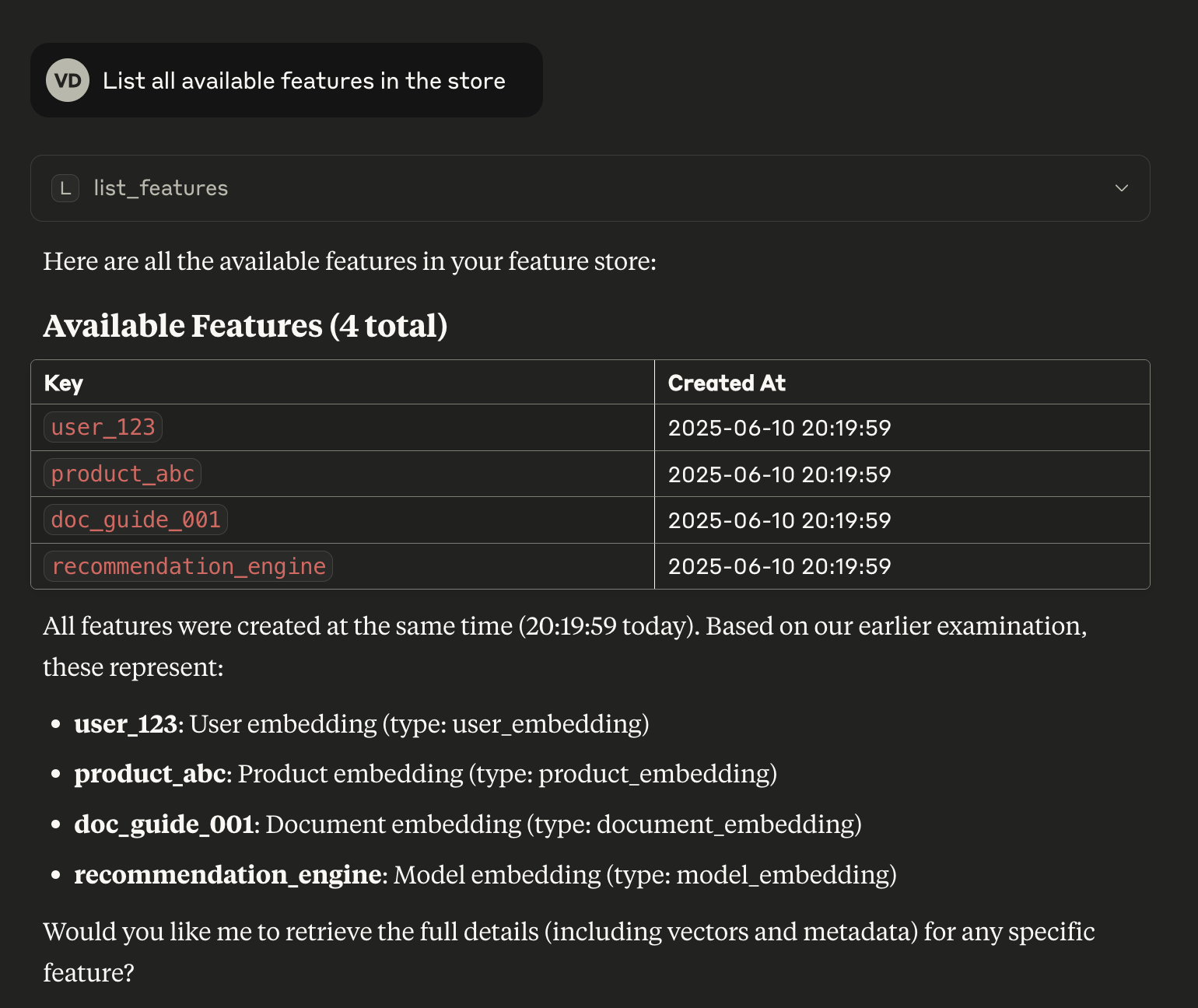

• "List all available features in the store"

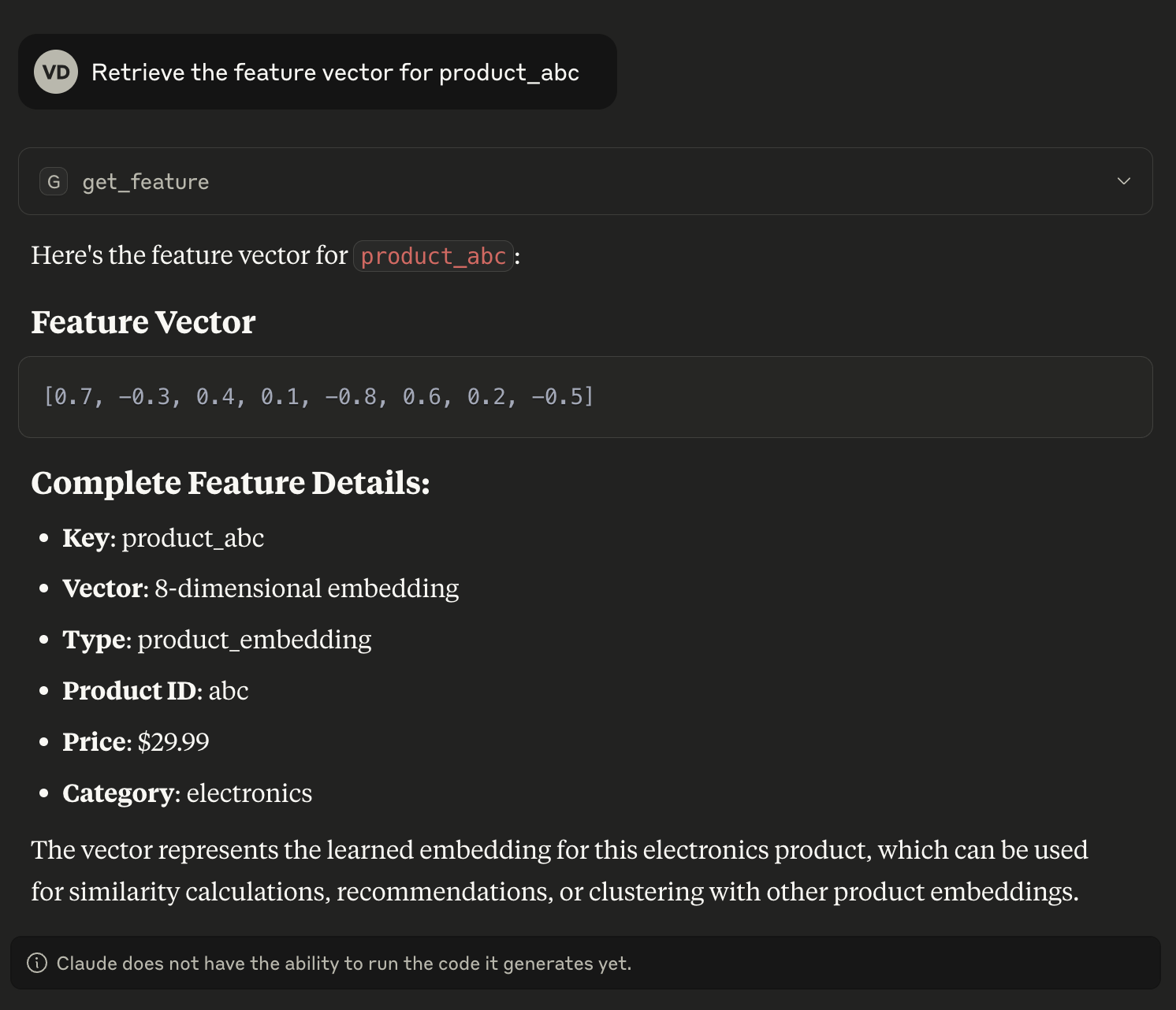

• "Retrieve the feature vector for product_abc"

• Try your own queries!

4.4. Production deployment considerations

Please note that this is a simple example to demonstrate the MCP server usage and not production-ready.

For production use, consider:

• Using a proper database (PostgreSQL, MySQL) instead of SQLite
• Adding authentication and authorization
• Implementing proper logging and monitoring
• Adding data validation and sanitization
• Using environment variables for configuration

---

5. Alternative client configurations

5.1. Generic MCP client configuration

For other MCP clients, you can use exactly the same configuration pattern as we did for Claude Desktop:

{
  "mcpServers": {
    "FeatureStoreLite": {
      "command": "uv",
      "args": [
        "run",
        "--with",
        "mcp[cli]",
        "mcp",
        "run",
        "path/to/featurestore_server.py"
      ]
    }
  }
}

---

6. Observability and debugging with Inspector

The MCP development tools provide excellent observability features.

6.1. Running in development mode

uv run mcp dev featurestore_server.py

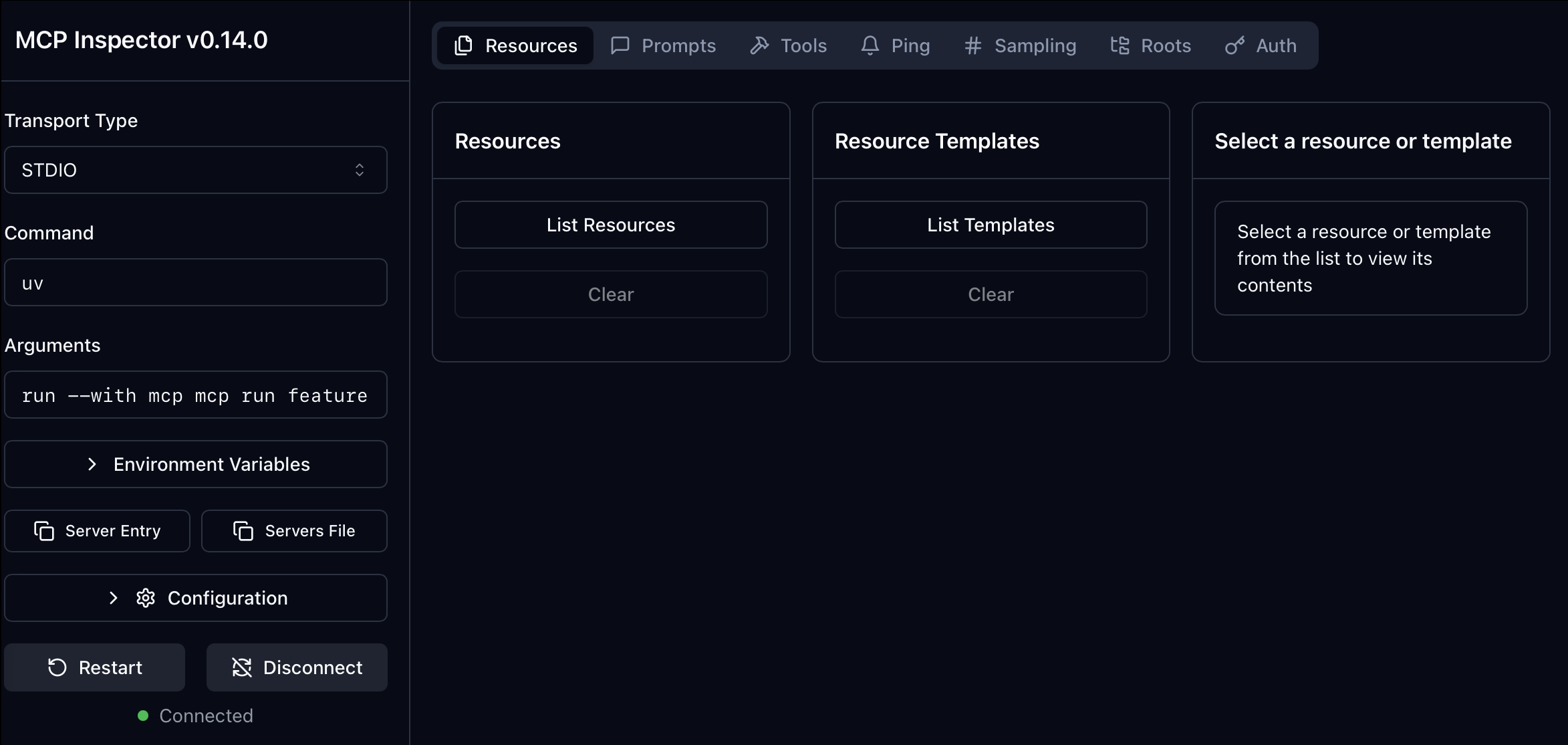

This starts the server with the MCP Inspector, which provides:

• Real-time request/response monitoring
• Tool and resource exploration
• Interactive testing interface
• Performance metrics

6.2. Using the Inspector

When running in development mode, the Inspector is available at the URL shown in the terminal output (typically http://localhost:6274).

The Inspector allows you to:

• Browse Resources: View available resources like the database schema
• Test Tools: Interactively test each tool with different parameters
• Monitor Traffic: See all MCP protocol messages in real-time
• Debug Issues: Identify problems with tool calls or resource access

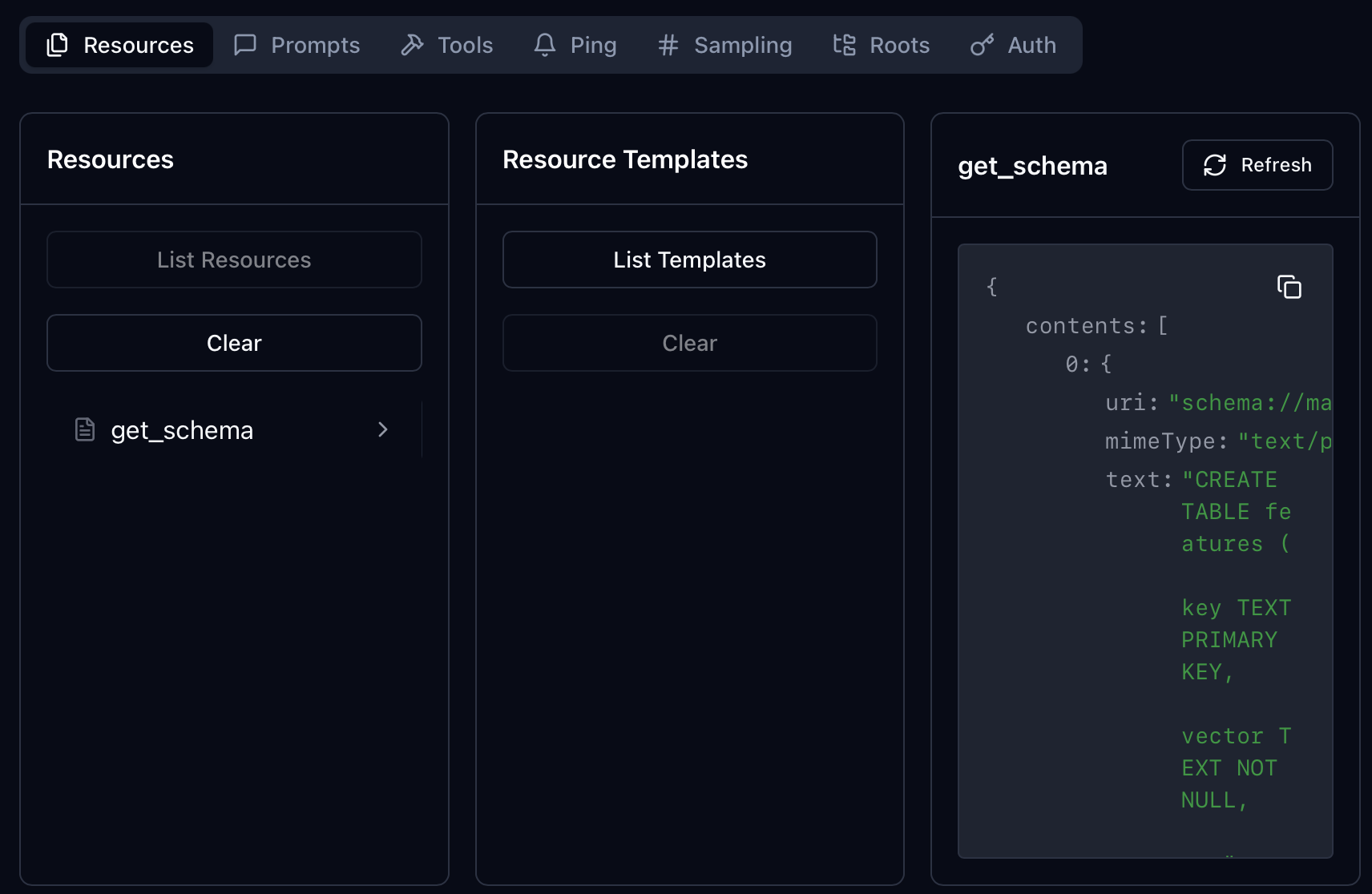

You can check manually the resources available in the server:

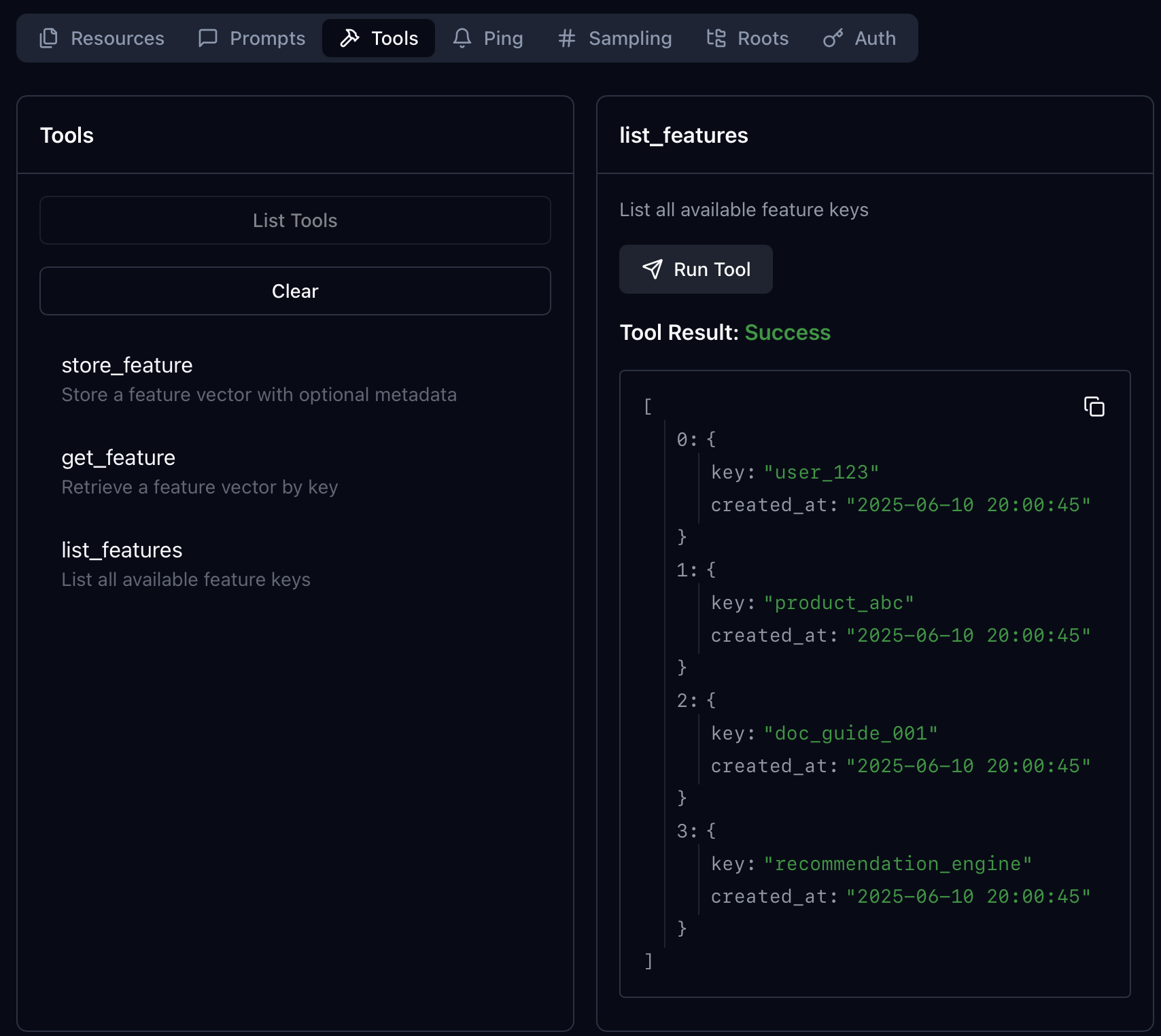

As well as the tools available:

---

7. Conclusion

In this tutorial, we built a custom FeatureStoreLite MCP server using FastMCP, ran it through uv, and integrated it with Claude Desktop. We also explored how to use the mcp inspector to see the server's capabilities and the requests and responses it is sending and receiving.
